Model: BZ1826WG1X2

Specifications:

Frequency Min 18000 MHz
Frequency Max 26000 MHz
Gain Min 28 dB
Gain Flatness ±1.2 dB
Noise Figure Max 2.3 dB
P1dB Min 8 dBm
Input VSWR 2:1
Output VSWR 2:1
Voltage (V) 8-15 V
Current 150 mA

In Stock 0

Outlines 100129 [WR42 Standard]

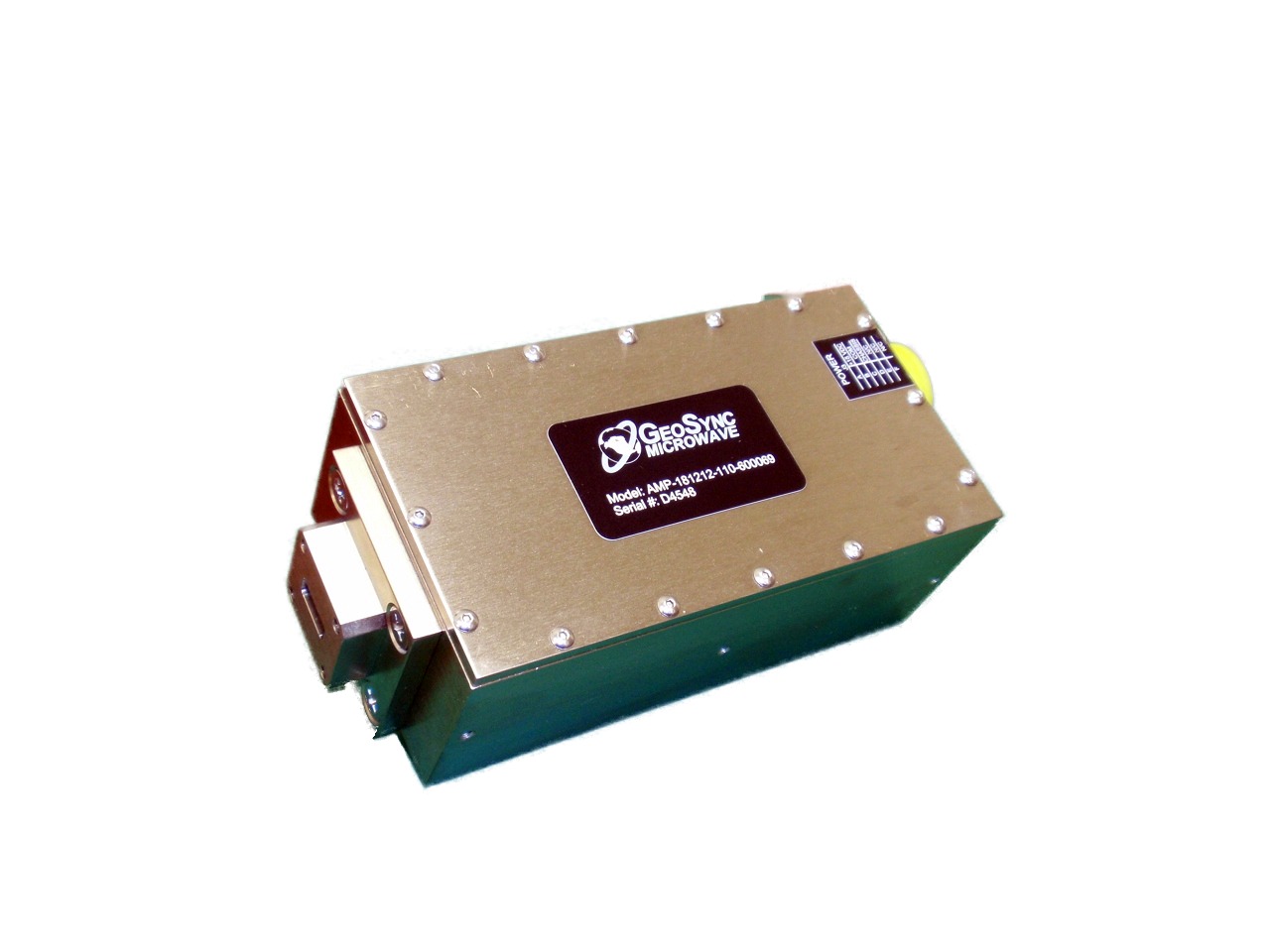

100142 [WR42 Outdoor]

Datasheet

Outline Drawing:

Click on image to see drawing file.
